Inside dimensions:W1198*D682*H1723mm power supply: 85-265V, 50Hz
windows: 6 windows Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified
1.LED display panels, Honeywell humidity sensor with error of ±3%RH;
2.High grade 1mm and 1.2mm cold rolled plate, reinforced structure design, high intensity
bearing, every shelf can bear over 100kg;
3.3.2mm toughened glass.
4.Zinc alloy lock with air tightness;
5.ROHS certified surface painting with Dupont powder;
6.Power supply: AC power 85V~265V 50/60Hz;
7. ESD safe high intensity truckles;
8. Cool looking of Dark green surface for customer’s options.

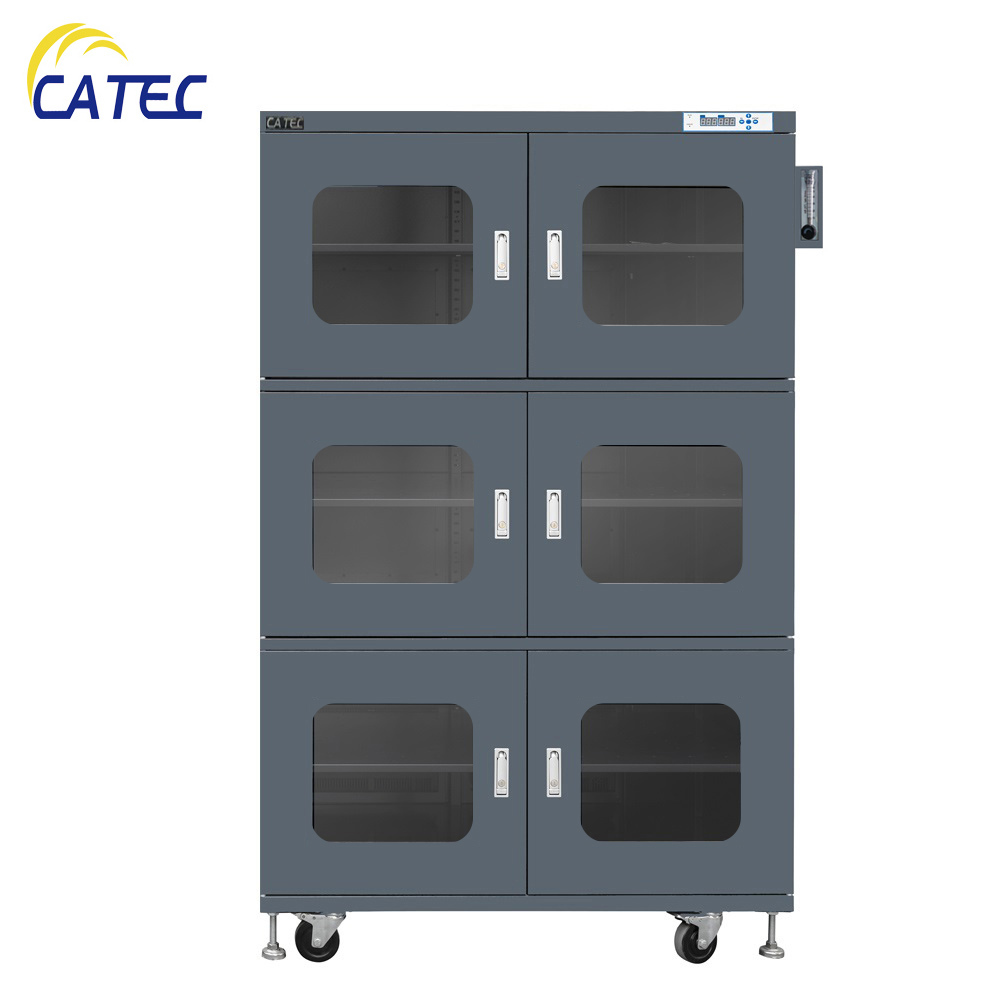

9. humidity proof cabinet DM3-UN1436E-6 is designed as per IPC/JEDEC J-STD-033C; CE certified.
10. Nitrogen gas input connection, with a settable flow meter, for better energy saving,With our software control, n2 will be saved for up to 70%, compared to the normal n2 system without program control.The inside humidity can be reduced to 1% in a few minutes when you start the n2 injection, When you stop using N2 gas, the cabinet still works to reduce humidity for normal usage.
11. humidity proof cabinet DM3-UN1436E-6, humidity is controlled below 10%RH.
Special options for customer's demands:
1) Data logging software for data reading and printing; read time up to 800hrs;
2) High flow air injection system,5-60/300LPM;
3) Independent segregated compartments;
4) Stainless steel material;
5) Low temperature baking up to 40℃;
6) Automated warning system needed, including flash and buzzer;
7) Calibration reminder clock;
8) External storage bins to be provided for document storage. The bins should be ESD safe.
9) dry module;
10) Spare shelf;
11) Slide drawer;
12) Induction LED light for door open;
13) Wrist strip terminal for ESD Safe working;
14) Small nitrogen supply machine(only for nitrogen cabinet), need to connect to compressed air machine;
15) Other options
