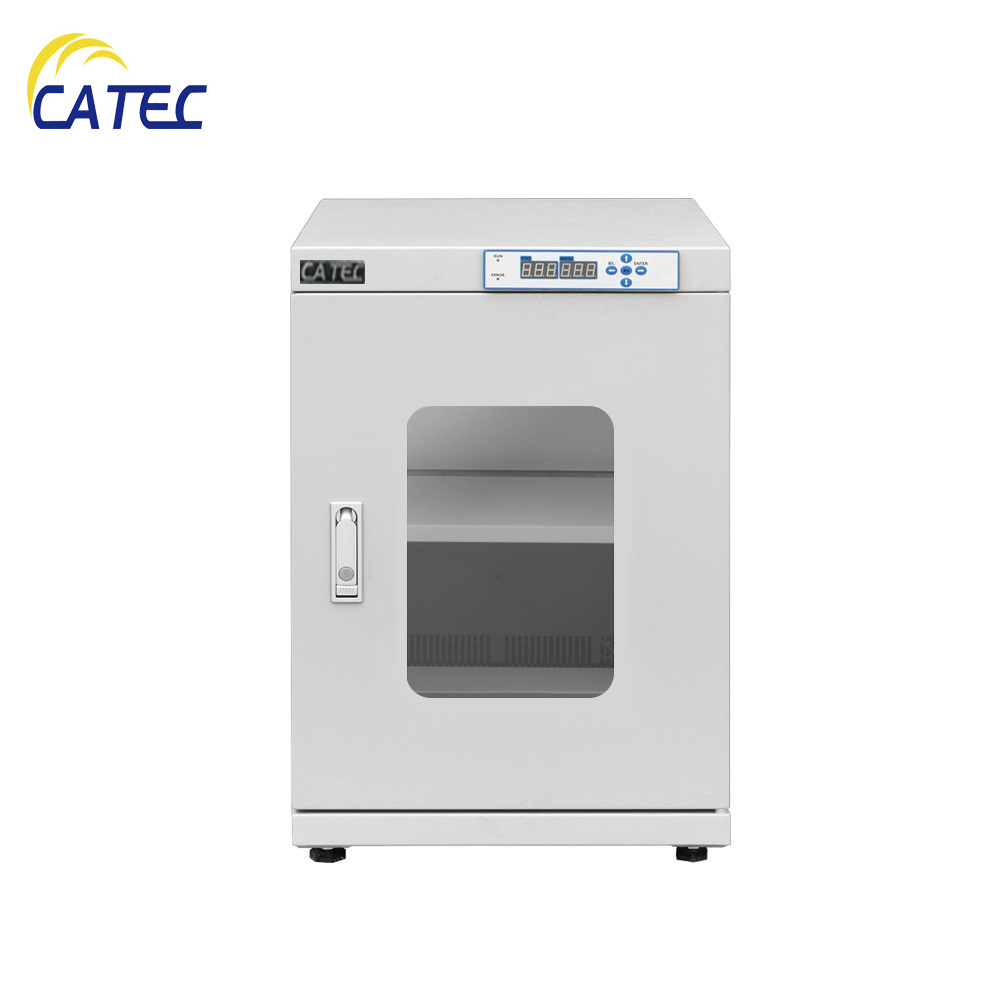

Desiccant dry cabinet DM3-B98
Specification:
Storage capacity: 98L
Shelf Quantity: 1,adjustable
Outside dimensions:W448*D400*H688mm
Inside dimensions:W446*D372*H598mm
power supply: 85-265V, 50Hz
humidity range:10-20%RH
Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified
Features:
1. Desiccant dry cabinet DM3-B98with 98 litre capacity for low humidity control 10-20%RH.
2. Reliable drying solution based on physical character of humidity absorbing&exhausting of the High polymer desiccant, with no nitrogen or vacuum needed and low power consumption.
3. LED display, Honeywell humidity sensor with humidity error within 3%RH,temperature within 1℃.
4. Quality 1mm and 1.2mm cold rolled steel, reinforced structure, high intensity bearing, each shelf loading over 40kg.
5. 3.2mm tempered glass for viewing inside status. Zinc alloy lock with air press
6. Four high bearing ESD support feet.
7. ROHS certified powder coating technology to keep your stored items from pollution.
8. Smart Control System and resettable target humidity.
9. Closed loop humidity controlled drying and storage cabinets, for humidity control storage of MSD, moisture sensitive device, like various electronic components and PCB boards.
10. CATEC Technologies “Active Desiccant” dry units incorporating CATEC –Flow Technology. Continually regenerated molecular sieve desiccant. Protect your valuable components from micro-cracking and delamination.
11. Not only drying storage, but also rapid moisture removal, dust proof for your components.
12. Less than 18 W average power consumption.
13. Meet the international industry standard IPC/Jedec J-STD-033C. CE and ROHS certified.
Special options for customer's demands:
1) Data logging software for data reading and printing; read time up to 800hrs;
2) Nitrogen module system;
3) Stainless steel material;
4) Automated alarming system;
5 External storage bins to be provided for document storage.
6) Spare shelf;
7) Slide drawer;
8) Induction LED light for door open;
9) Wrist strip terminal for ESD Safe working;
10) Small nitrogen supply machine(only for nitrogen cabinet), need to connect to compressed air machine;
11) Other options
