  • nitrogen cabinet DM3-N1436E-4

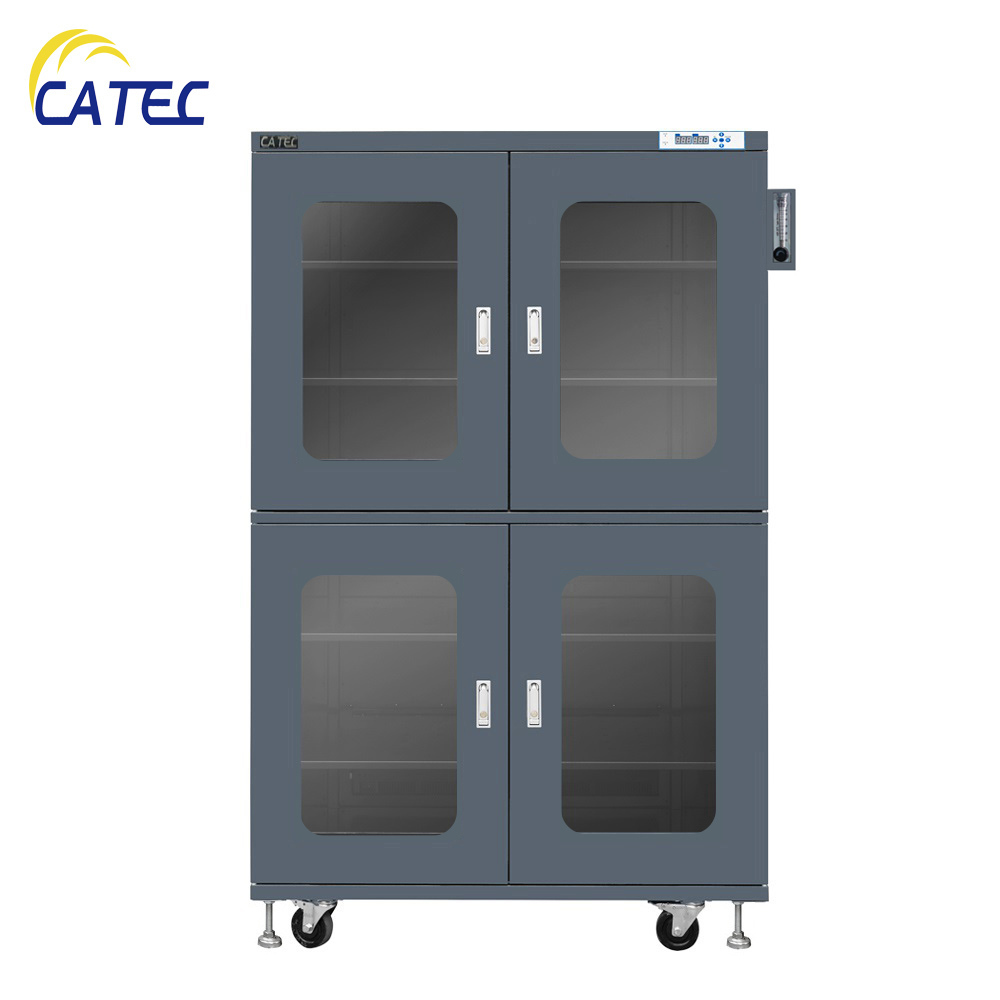

nitrogen cabinet DM3-N1436E-4

stars, based on 0reviews
$2160.00now$1940.00 unit
100items available

nitrogen cabinet DM3-N1436E-4


Specification:
Storage capacity:1436L
Shelf Quantity: 5,adjustable
Outside dimensions:W1200*D710*H1910mm
Inside dimensions:W1198*D682*H1723mm
power supply: 85-265V, 50Hz
humidity range:1-60%RH
windows: 4 windows
Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified

Features:
1.LED display panels, Honeywell humidity sensor with error of ±3%RH;
2.High grade 1mm and 1.2mm cold rolled plate, reinforced structure design, high intensity
bearing, every shelf can bear over 100kg;
3.3.2mm toughened glass.
4.Zinc alloy lock with air tightness;
5.ROHS certified surface painting with Dupont powder;
6.Power supply: AC power 85V~265V 50/60Hz;
7. ESD safe high intensity truckles;
8. Cool looking of Dark green surface for customer’s options.
9. Designed as per IPC/JEDEC J-STD-033C; CE certified.
10. Nitrogen gas input connection, with a settable flow meter, for better energy saving,With our software control, n2 will be saved for up to 70%, compared to the normal n2 system without program control.
11. humidity is setting between 1-60%RH.

Special options for customer's demands:
1) Data logging software for data reading and printing; read time up to 800hrs;
2) High flow air injection system,5-60/300LPM;
3) Independent segregated compartments;
4) Stainless steel material;
5) Low temperature baking up to 40℃;
6) Automated warning system needed, including flash and buzzer;
7) Calibration reminder clock;
8) External storage bins to be provided for document storage. The bins should be ESD safe.
9) dry module;
10) Spare shelf;
11) Slide drawer;
12) Induction LED light for door open;
13) Wrist strip terminal for ESD Safe working;
14) Small nitrogen supply machine(only for nitrogen cabinet), need to connect to compressed air machine;
15) Other options

1436L whilte nitrogen cabinet


If you want to buy directly from our distributor in your area,

pls feel free to check through online service.

Application:
for humidity proof storage
humidity range:
1-60%RH
material:
quality 1.0mm steel board
capacity:
1436L
outsize dimension:
W1200*D710*H1910mm
ESD safe:
YES
windows:
4 windows
