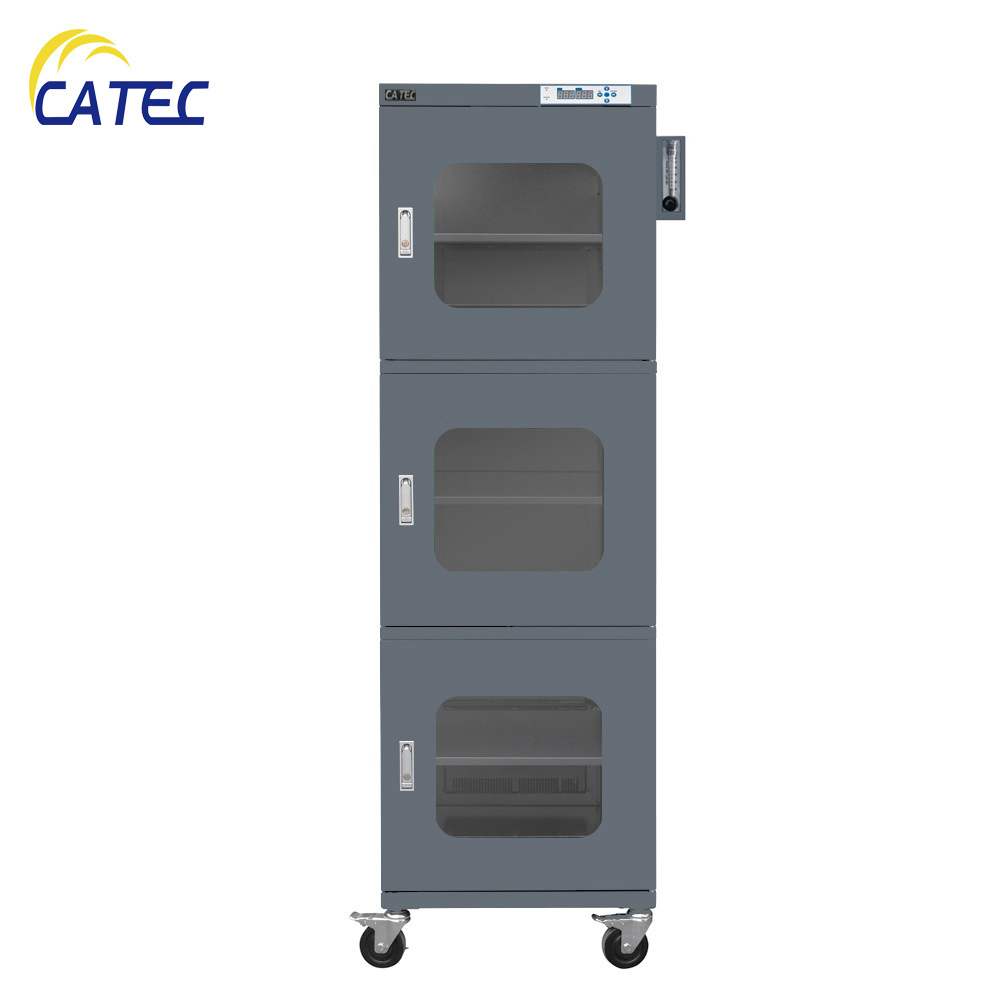

Desiccant dry cabinet DM3-U7N18E
Specification:
Storage capacity:718L
Shelf Quantity: 5,adjustable
Outside dimensions:W598*D710*H1910mm
Inside dimensions:W596*D682*H1723mm
power supply: 85-265V, 50Hz
humidity range:1-5%RH, with n2 system for optional usage
Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified
Features:
1. CATEC advanced drying module to control the cabinet inside humidity within the range of 1~5%RH.
2. LED display, the humidity sensor is made by Honeywell Relative humidity error is ±3%RH.
3. Desiccant dry cabinet DM3-UN718E Using 1mm and 1.2mm cold rolled plate of bao steel, reinforcing structure design, high intensity bearing, every shelf can bear over 80kg goods.
4. Desiccant dry cabinet DM3-UN718E Using 3.2mm toughened glass.
5. Zinc alloy lock with plus pressure capability.
6. Desiccant dry cabinet DM3-UN718E Using advanced powder coating technology with Dupont powder, high anti-erosion performance, and the surface powder coating has acquired ROHS certification, then which can avoid your stored goods from pollution.
7. AC power 85V~265V 50/60Hz.
8. Anti-ESD powder coating is available for choosing.
9.Desiccant dry cabinet DM3-UN718E is designed as per IPC/JEDEC J-STD-033C; CE certified.
10. Patented N2 gas module with CATEC unique software control, the nitrogen
will be shut off automatically when reaching the target humidity, and be
powered-on to input nitrogen again when over the setting value. Nitrogen gas
will be saved for up to 70%.
Special options for customer's demands:
1) Data logging software for data reading and printing; read time up to 800hrs;
2) High flow air injection system,5-60/300LPM;
3) Independent segregated compartments;
4) Stainless steel material;
5) Low temperature baking up to 40℃;
6) Automated warning system needed, including flash and buzzer;
7) Calibration reminder clock;
8) External storage bins to be provided for document storage. The bins should be ESD safe.
9) Spare shelf;
10) Slide drawer;
11) Induction LED light for door open;
12) Wrist strip terminal for ESD Safe working;
13) Small nitrogen supply machine(only for nitrogen cabinet), need to connect to compressed air machine;
14) Other options
718 series,electronic dry cabinet,desiccant cabinet
