  • Desiccant dry cabinet DM3-C1436E-4

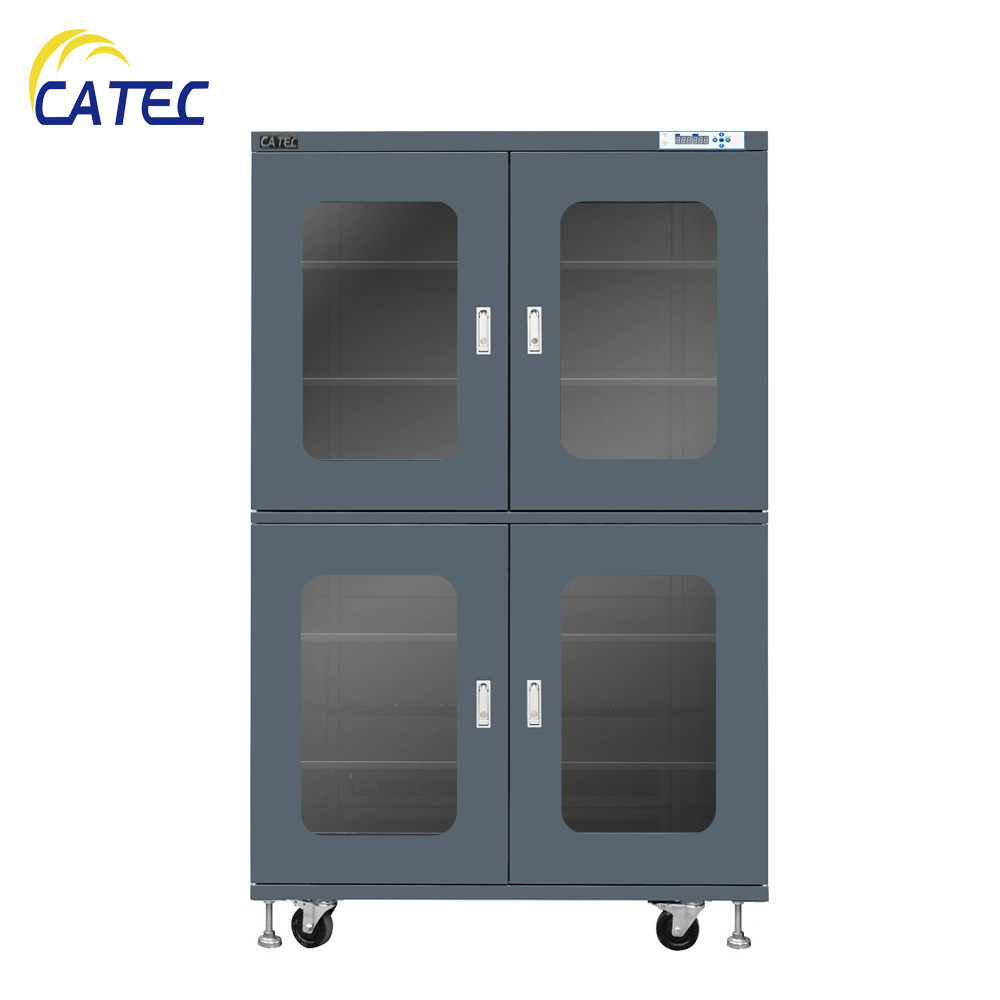

Desiccant dry cabinet DM3-C1436E-4

stars, based on 0reviews
$2620.00now$2360.00 unit
100items available
Desiccant dry cabinet DM3-C1436E-4


Specification:
Storage capacity:1436L
Shelf Quantity: 5,adjustable
Outside dimensions:W1200*D710*H1910mm
Inside dimensions:W1198*D682*H1723mm
power supply: 85-265V, 50Hz
humidity range:1-10%RH
windows: 4 windows
Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified

Features:
1.  LED display, the humidity sensor is made by Honeywell Relative humidity error is ±3%RH
2.
Desiccant dry cabinet DM3-C1436E-4 Using 1mm and 1.2mm cold rolled plate of bao steel, reinforcing structure design, high intensity  bearing, every shelf can bear over 100kg goods.
3. Desiccant dry cabinet DM3-C1436E-4 Using 3.2mm toughened glass.
4.  Zinc alloy lock with plus pressure capability.
5.
Desiccant dry cabinet DM3-C1436E-4 Using advanced powder coating technology with Dupont powder, high anti-erosion performance, and the surface powder coating has acquired ROHS certification, then which can avoid your stored goods from pollution.
6.  AC power 85V~265V 50/60Hz.
7.  Anti-ESD powder coating is available for choosing.
8.Desiccant dry cabinet DM3-C1436E-4 is designed is d as per IPC/JEDEC J-STD-033C; CE certified.

Special options for customer's demands:
1) Data logging software for data reading and printing; read time up to 800hrs;
2) High flow air injection system,5-60/300LPM;
3) Independent segregated compartments;
4) Stainless steel material;
5) Low temperature baking up to 40℃;
6) Automated warning system needed, including flash and buzzer;
7) Calibration reminder clock;
8) External storage bins to be provided for document storage. The bins should be ESD safe.
9) Nitrogen module;
10) Spare shelf;
11) Slide drawer;
12) Induction LED light for door open;
13) Wrist strip terminal for ESD Safe working;
14) Small nitrogen supply machine(only for nitrogen cabinet), need to connect to compressed air machine;
15) Other options

Application:
for humidity proof storage
humidity range:
1-10%RH
material:
quality 1.0mm steel board
capacity:
1436L
outsize dimension:
W1200*D710*H1910mm
ESD safe:
YES
windows:
4 windows
