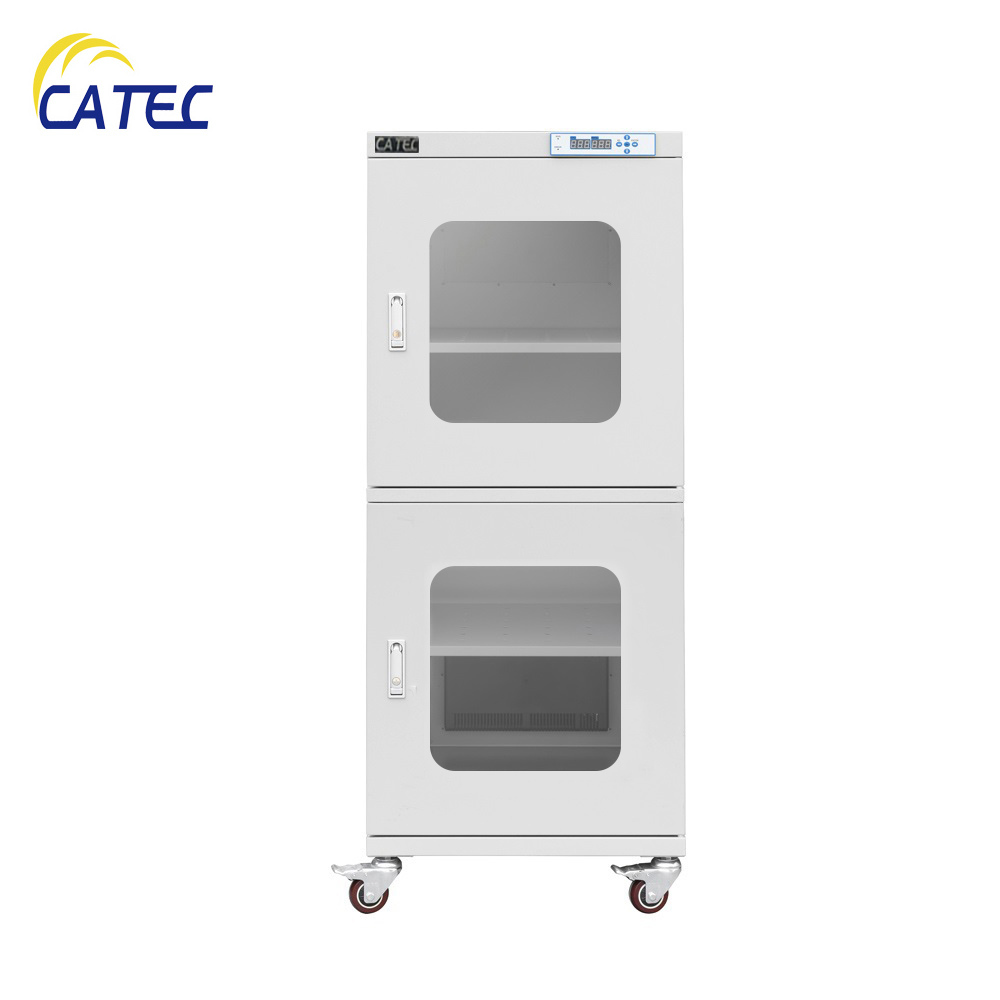

Desiccant dry cabinet DM3-B540
Specification:
Storage capacity:540L
Shelf Quantity: 3,adjustable
Outside dimensions:W598*D710*H1465mm
Inside dimensions:W596*D682*H1298mm
power supply: 85-265V, 50Hz
humidity range:10-20%RH
Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified
Features:
1. LED display, the humidity sensor is made by Honeywell Relative humidity error is ±3%RH
2. Desiccant dry cabinet DM3-B540 Using 1mm and 1.2mm cold rolled plate of bao steel, reinforcing structure design, high intensity bearing, every shelf can bear over 60kg goods.
3.Desiccant dry cabinet DM3-B540 Using 3.2mm toughened glass.
4. Zinc alloy lock with plus pressure capability.
5. Desiccant dry cabinet DM3-B540 Using advanced powder coating technology with Dupont powder, high anti-erosion performance, and the surface powder coating has acquired ROHS certification, then which can avoid your stored goods from pollution.
6. AC power 85V~265V 50/60Hz.
8. Anti-ESD powder coating is available for choosing.
9. Desiccant dry cabinet DM3-B540 is designed as per IPC/JEDEC J-STD-033C; CE certified.
Special options for customer's demands:
1) data logging systemn with CATEC software by USB connection with computer for H&Tdata reading and printing;
2) code lock for safety;
3) alarm system with light tower;
4) high flow air injection system;
5) stainless steel cabinet;
