  • Desiccant dry cabinet DM3-A1436E-6

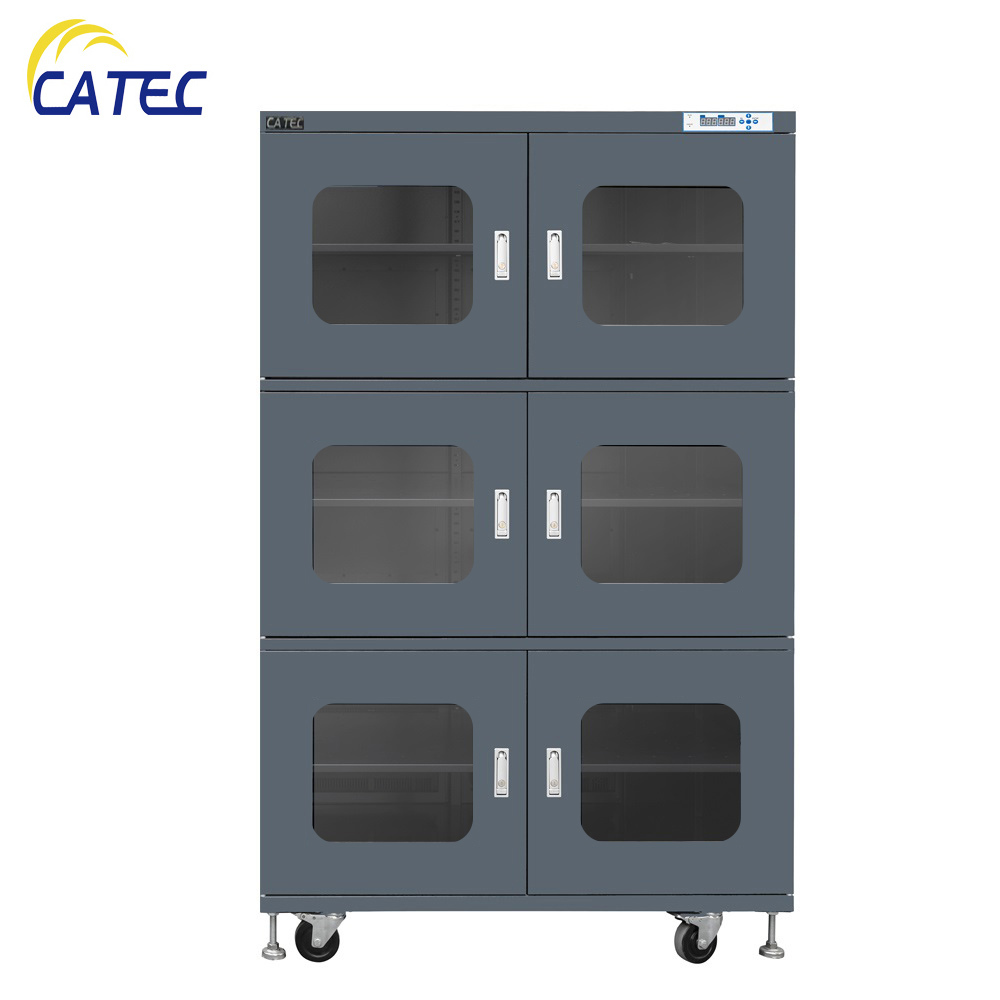

Desiccant dry cabinet DM3-A1436E-6

stars, based on 0reviews
$2188.00now$1970.00 unit
100items available
Desiccant dry cabinet DM3-A1436E-6


Specification:
Storage capacity:1436L
Shelf Quantity: 5,adjustable
Outside dimensions:W1200*D710*H1910mm
Inside dimensions:W1198*D682*H1723mm
power supply: 85-265V, 50Hz
humidity range:20-60%RH
windows: 6 windows
Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified

Features:
1.  LED display, the humidity sensor is made by Honeywell Relative humidity error is ±3%RH
2.  Using 1mm and 1.2mm cold rolled plate of bao steel, reinforcing structure design, high intensity  bearing, every shelf can bear over 100kg goods.
3.  Using 3.2mm toughened glass.
4.  Zinc alloy lock with plus pressure capability.
5.  Using advanced powder coating technology with Dupont powder, high anti-erosion performance, and the surface powder coating has acquired ROHS certification, then which can avoid your stored goods from pollution.
6.  AC power 85V~265V 50/60Hz.
8.  Anti-ESD powder coating is available for choosing.
9. Designed as per IPC/JEDEC J-STD-033C; CE certified.

Special options for customer's demands:
1) Data logging software for data reading and printing; read time up to 800hrs;
2) High flow air injection system,5-60/300LPM;
3) Independent segregated compartments;
4) Stainless steel material;
5) Low temperature baking up to 40℃;
6) Automated warning system needed, including flash and buzzer;
7) Calibration reminder clock;
8) External storage bins to be provided for document storage. The bins should be ESD safe.
9) Nitrogen module;
10) Spare shelf;
11) Slide drawer;
12) Induction LED light for door open;
13) Wrist strip terminal for ESD Safe working;
14) Small nitrogen supply machine(only for nitrogen cabinet), need to connect to compressed air machine;
15) Other options

nitrogen cabinet, dry cabinet, dry box
Application:
for humidity proof storage
humidity range:
20-60%RH
material:
quality 1.0mm steel board
capacity:
1436L
outsize dimension:
W1200*D710*H1910mm
ESD safe:
YES
windows:
6 windows
