Inside dimensions:W446*D372*H598mm power supply: 85-265V, 50Hz
humidity range:10-20%RH Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified

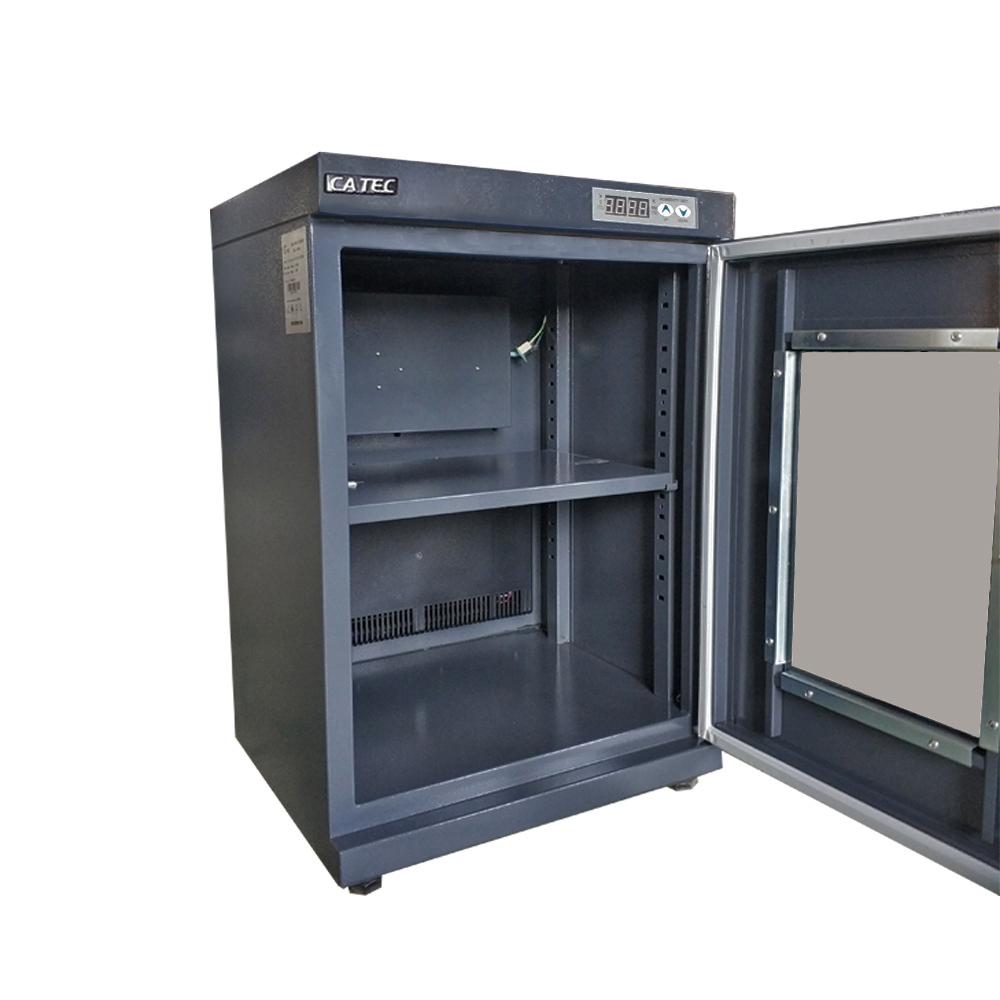

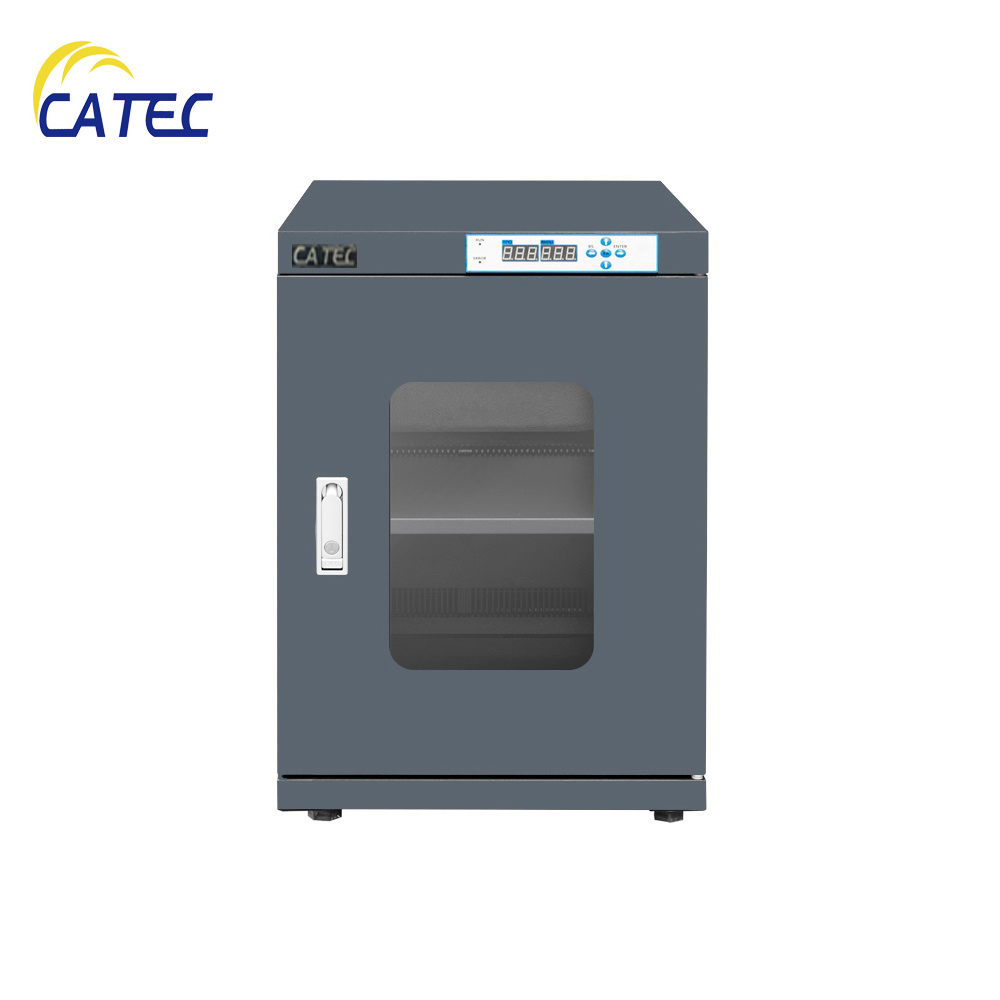

1. LED display, the humidity sensor is made byHoneywellRelative humidity error is ±3%RH, we are professional desiccant dry cabinet supplier DM3-B98E 2. damp proof cabinet DM3-B98E Using 1mm and 1.2mm cold rolled plate of bao steel, reinforcing structure design, high intensity bearing, every shelf can bear over 40kg goods.
3. damp proof cabinet DM3-B98E Using 3.2mm toughened glass.
4. Zinc alloy lockwith plus pressure capability. 5. damp proof cabinet DM3-B98E Using advanced powder coating technology with Dupont powder, high anti-erosionperformance,and the surface powder coating has acquiredROHScertification, then which can avoid yourstored goods from pollution.
6. AC power 85V~265V 50/60Hz. 8. Anti-ESD powder coating is available for choosing.
9. damp proof cabinet DM3-B98E is designed as per IPC/JEDEC J-STD-033C; CE certified.
Special options for customer's demands:
1) Data logging software for data reading and printing; read time up to 800hrs;
2) High flow air injection system,5-60/300LPM;
3) Independent segregated compartments;
4) Stainless steel material;
5) Automated warning system needed, including flash and buzzer;
6) Calibration reminder clock;
7) External storage bins to be provided for document storage. The bins should be ESD safe.
8) Nitrogen module;
9) Spare shelf;
10) Slide drawer;
11) Induction LED light for door open;
12) Wrist strip terminal for ESD Safe working;
13) Small nitrogen supply machine(only for nitrogen cabinet), need to connect to compressed air machine;
