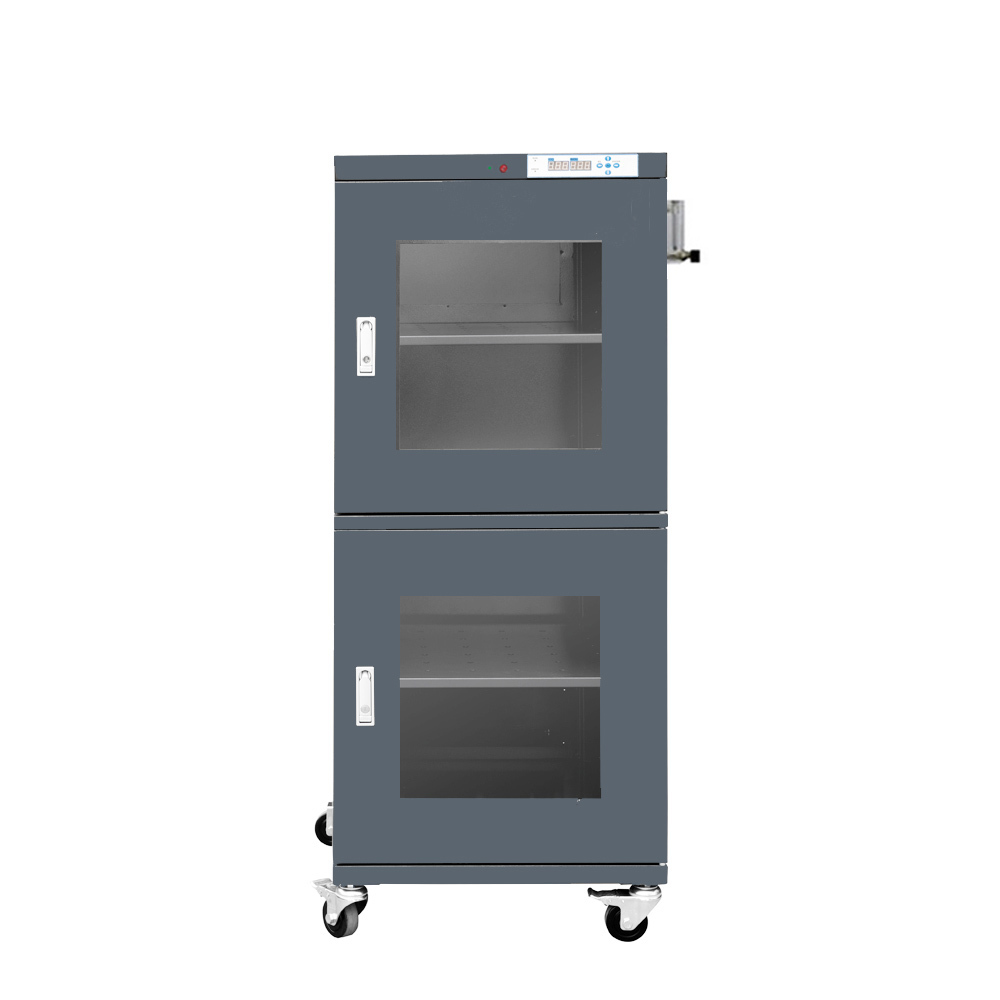

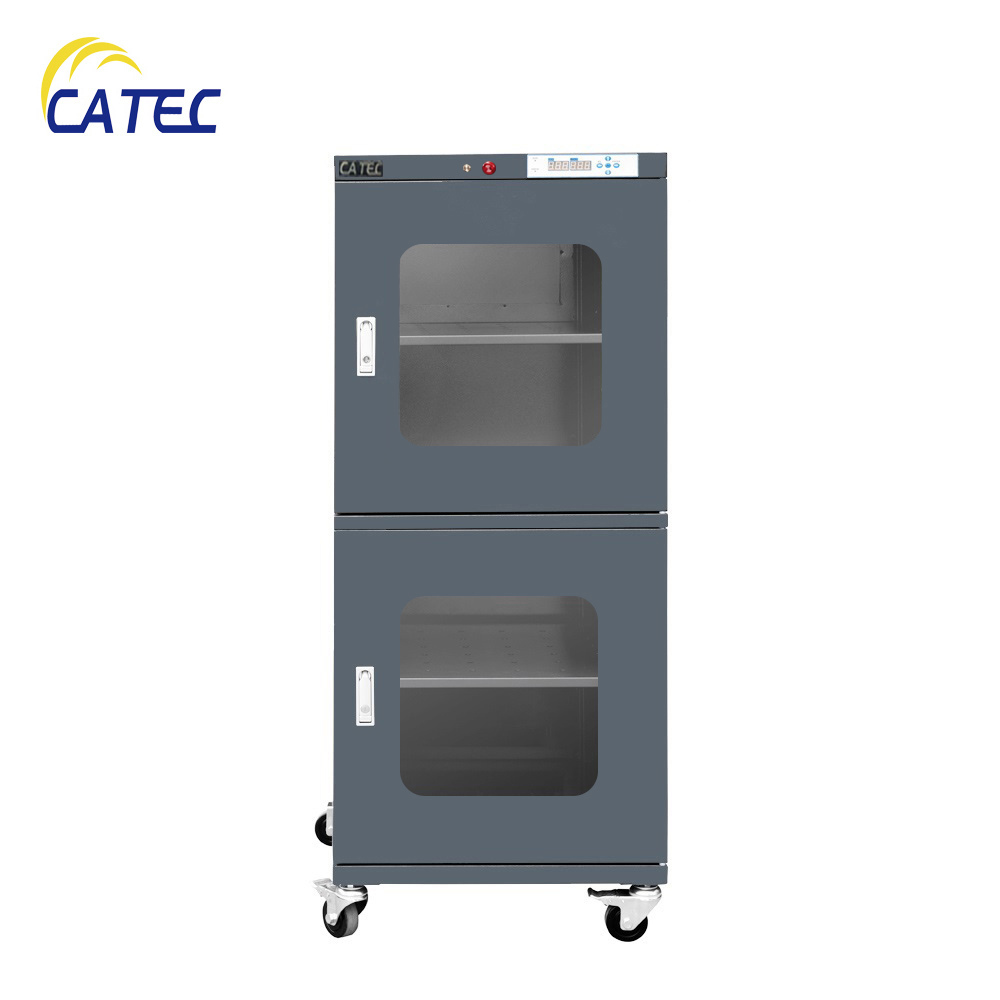

10% desiccant dry cabinet DM3-CB240E
Specification:
Storage capacity: 240L
Shelf Quantity: 3,adjustable
Outside dimensions:W598*D400*H1310mm
Inside dimensions:W596*D372*H1148mm
power supply: 85-265V, 50Hz
humidity range:1-10%RH
with humidity alarm system
Compliant with IPC/JEDEC J-STD-033C, and CE/ROHS certified
Features:
1.LED display panels, quality imported humidity sensor with error of ±2%RH, 0.5℃，display resolution 0.1% RH,0.1deg C.
2.High grade 1mm and 1.2mm steel board, reinforced structure design, high intensity
bearing, every shelf can bear over 80kg.
3. tempered glass for each window, total 2 windows.
4.Zinc alloy lock with good air tightness.
5. ROHS certified surface painting powder; Cool looking surface for Anti ESD, static dissipative (106 to 109 ohm).
6.Power supply: AC power 85V~265V 50/60Hz.
7.ESD safe high intensity truckles of which two in front are brakable.
8.Latest new dry unit for C/U type, after door open for 30 seconds, recovery time ≤15mins for <10% RH and ≤30mins for <5% RH, still dehumidify within 12 hours when power off.
9.Automated warning system for both door open and humidity exceeding, including flash and buzzer.
10.Designed as per IPC/JEDEC J-STD-033C; CE certified.
Special options for customer's demands:
1)data logging software for data reading and printing; read time up to 800hrs;
2) high flow air injection system,5-60/300LPM;
3) independent segregated compartments;
4) stainless steel material;
5) low temperature baking up to 40℃;
6) Automated warning system needed, including flash and buzzer;
7) Calibration reminder clock;
8) External storage bins to be provided for document storage. The bins should be ESD safe.
9)nitrogen control box;
10) Spare shelf;
11) Slide drawer;
12) Induction LED light for door open;
13) Wrist strip terminal for ESD Safe working;
14) Small nitrogen supply machine(only for nitrogen cabinet), need to connect to compressed air machine;
15）other options
